A Harbor with Complex Resources and Conditions

The fourth C tutorial models a harbor with ships, tugs, berths, wind, tide, and conditions for safe docking. The central feature is the same in Python: cimba.Condition lets a process wait until an arbitrary Python predicate becomes true.

An Empty Simulation Template

The C tutorial begins with an empty shell. Python’s equivalent is simply a simulation context with a stop event:

import cimba


def run_template(duration: float = 10.0, seed: int = 40) -> dict[str, float | int]:
    with cimba.Simulation(start_time=0.0, seed=seed) as sim:
        sim.stop_at(duration, priority=-100)
        sim.execute()
        return {"seed": sim.seed_used, "now": sim.now, "event_count": sim.event_count}


def main() -> None:
    print(run_template())


if __name__ == "__main__":
    main()

Processes, Resources, and Conditions

The simulated harbor state can be an ordinary dictionary. Tugs and berths are resource pools, the communications channel is a binary resource, and the harbormaster is a condition:

ctx = {
    "env": {"wind_magnitude": 20.0, "water_depth": 5.0},
    "tugs": cimba.ResourcePool("Tugs", capacity=2),
    "berths": [
        cimba.ResourcePool("Small berth", 1),
        cimba.ResourcePool("Large berth", 1),
    ],
    "comms": cimba.Resource("Comms"),
    "harbormaster": cimba.Condition("Harbormaster"),
    "departed": cimba.ObjectQueue("Departed ships"),
    "time_in_system": [cimba.Dataset(), cimba.Dataset()],
    "ship_by_process": {},
}
ctx["harbormaster"].subscribe(ctx["tugs"], *ctx["berths"])

Building Our Ships

The C tutorial derives struct ship from cmb_process. Python keeps ship characteristics in normal objects or dictionaries and maps a process object to its ship data:

ship = {
    "size": SMALL,
    "tugs_needed": 1,
    "max_wind": 10.0,
    "min_depth": 8.0,
    "unloading_time": 2.0,
}
proc = cimba.Process("Ship_000001_small", ship_proc, ctx, pass_process=True)
ctx["ship_by_process"][proc] = ship
proc.start()

pass_process=True is used here because the ship target needs the cimba.Process object as a key into ship_by_process.

Weather and Tides

In the full C tutorial, weather and tide are separate processes that update the environment and signal the harbormaster. The checked-in compact Python tutorial uses fixed values so the tests stay deterministic, but the C-like stochastic version uses the current Python distribution functions directly:

def weather_and_tide(ctx):
    while True:
        old_wind = ctx["env"]["wind_magnitude"]
        ctx["env"]["wind_magnitude"] = 0.5 * cimba.rayleigh(5.0) + 0.5 * old_wind
        ctx["env"]["wind_direction"] = cimba.pert(0.0, 225.0, 360.0)

        astronomical_tide = ctx["tide_model"].depth_at(cimba.time())
        weather_tide = 0.1 * ctx["env"]["wind_magnitude"]
        ctx["env"]["water_depth"] = astronomical_tide + weather_tide

        ctx["harbormaster"].signal()
        cimba.hold(1.0)

cimba.rayleigh(s) takes the Rayleigh scale parameter. cimba.pert(min, mode, max) is the lowercase Python wrapper for Cimba’s PERT distribution.

The general rule is the same as in C: whenever model state changes in a way that could make a waiting condition true, signal the condition.

Resources and Condition Variables

A condition predicate receives the waiting process and the context object. It must inspect state and return True or False:

def is_ready_to_dock(process, ctx):
    ship = ctx["ship_by_process"][process]
    return (
        ctx["env"]["water_depth"] >= ship["min_depth"]
        and ctx["env"]["wind_magnitude"] <= ship["max_wind"]
        and ctx["tugs"].available >= ship["tugs_needed"]
        and ctx["berths"][ship["size"]].available >= 1
    )

As in the C tutorial, a waiting process should re-check the predicate after it wakes. Another process may have consumed the relevant resources first:

while not is_ready_to_dock(me, ctx):
    assert ctx["harbormaster"].wait(is_ready_to_dock, ctx) == cimba.SUCCESS

The C tutorial uses native resource-guard observer registration so releases from tugs and berths automatically forward a signal to the harbormaster. Python exposes this as cimba.Condition.subscribe():

ctx["harbormaster"].subscribe(ctx["tugs"], *ctx["berths"])

Use explicit condition.signal() for model state that is not represented by a Cimba resource guard, such as weather and tide changes.

The Life of a Ship

Once a ship is cleared, it acquires berth and tug resources, uses the communications resource, docks, unloads, acquires tugs again, leaves, and puts a departure record into an object queue:

def ship_proc(me, ctx):
    ship = ctx["ship_by_process"][me]
    t_arrival = cimba.time()

    while not is_ready_to_dock(me, ctx):
        assert ctx["harbormaster"].wait(is_ready_to_dock, ctx) == cimba.SUCCESS

    berth = ctx["berths"][ship["size"]]
    assert berth.acquire(1) == cimba.SUCCESS
    assert ctx["tugs"].acquire(ship["tugs_needed"]) == cimba.SUCCESS

    assert ctx["comms"].acquire() == cimba.SUCCESS
    cimba.hold(cimba.gamma(5.0, 0.01))
    ctx["comms"].release()

    cimba.hold(cimba.pert(0.4, 0.5, 0.8))
    ctx["tugs"].release(ship["tugs_needed"])

    avg = ship["unloading_time"]
    cimba.hold(cimba.pert(0.75 * avg, avg, 2.0 * avg))

    assert ctx["tugs"].acquire(ship["tugs_needed"]) == cimba.SUCCESS
    assert ctx["comms"].acquire() == cimba.SUCCESS
    cimba.hold(cimba.gamma(5.0, 0.01))
    ctx["comms"].release()

    cimba.hold(cimba.pert(0.4, 0.5, 0.8))
    berth.release(1)
    ctx["tugs"].release(ship["tugs_needed"])

    system_time = cimba.time() - t_arrival
    ctx["departed"].put((me.name, ship["size"], system_time))
    return system_time

Because the harbormaster condition subscribed to the tug and berth resource guards during setup, these releases are forwarded in C; the ship process does not need a Python-level harbormaster.signal() call.

A separate departure process consumes those records and collects statistics in cimba.Dataset objects. This is the Python equivalent of the C tutorial’s departure process reclaiming ship objects and reading process exit values.

Running a Trial

The complete compact trial is:

import cimba

SMALL = 0
LARGE = 1


def is_ready_to_dock(process, ctx):
    ship = ctx["ship_by_process"][process]
    return (
        ctx["env"]["water_depth"] >= ship["min_depth"]
        and ctx["env"]["wind_magnitude"] <= ship["max_wind"]
        and ctx["tugs"].available >= ship["tugs_needed"]
        and ctx["berths"][ship["size"]].available >= 1
    )


def ship_proc(me, ctx):
    ship = ctx["ship_by_process"][me]
    t_arrival = cimba.time()

    while not is_ready_to_dock(me, ctx):
        assert ctx["harbormaster"].wait(is_ready_to_dock, ctx) == cimba.SUCCESS

    berth = ctx["berths"][ship["size"]]
    assert berth.acquire(1) == cimba.SUCCESS
    assert ctx["tugs"].acquire(ship["tugs_needed"]) == cimba.SUCCESS

    assert ctx["comms"].acquire() == cimba.SUCCESS
    cimba.hold(0.05)
    ctx["comms"].release()

    cimba.hold(0.5)
    ctx["tugs"].release(ship["tugs_needed"])

    cimba.hold(ship["unloading_time"])

    assert ctx["tugs"].acquire(ship["tugs_needed"]) == cimba.SUCCESS
    assert ctx["comms"].acquire() == cimba.SUCCESS
    cimba.hold(0.05)
    ctx["comms"].release()

    cimba.hold(0.5)
    berth.release(1)
    ctx["tugs"].release(ship["tugs_needed"])

    system_time = cimba.time() - t_arrival
    ctx["departed"].put((me.name, ship["size"], system_time))
    return system_time


def departure_proc(ctx):
    while True:
        sig, departed = ctx["departed"].get()
        assert sig == cimba.SUCCESS
        _name, size, system_time = departed
        ctx["time_in_system"][size].add(system_time)


def run_harbor_trial(seed: int = 41) -> dict[str, object]:
    def weather_and_tide(ctx):
        cimba.hold(1.0)
        ctx["env"]["wind_magnitude"] = 4.0
        ctx["env"]["water_depth"] = 12.0
        assert ctx["harbormaster"].signal() == 1

    with cimba.Simulation(seed=seed) as sim:
        ctx = {
            "env": {"wind_magnitude": 20.0, "water_depth": 5.0},
            "tugs": cimba.ResourcePool("Tugs", capacity=2),
            "berths": [cimba.ResourcePool("Small berth", 1), cimba.ResourcePool("Large berth", 1)],
            "comms": cimba.Resource("Comms"),
            "harbormaster": cimba.Condition("Harbormaster"),
            "departed": cimba.ObjectQueue("Departed ships"),
            "time_in_system": [cimba.Dataset(), cimba.Dataset()],
            "ship_by_process": {},
        }
        ctx["harbormaster"].subscribe(ctx["tugs"], *ctx["berths"])
        ship = {
            "size": SMALL,
            "tugs_needed": 1,
            "max_wind": 10.0,
            "min_depth": 8.0,
            "unloading_time": 2.0,
        }
        proc = cimba.Process("Ship_000001_small", ship_proc, ctx, pass_process=True)
        ctx["ship_by_process"][proc] = ship
        proc.start()
        cimba.Process("Departures", departure_proc, ctx).start()
        cimba.Process("WeatherDepth", weather_and_tide, ctx).start()
        sim.execute()

        return {
            "small_system_times": ctx["time_in_system"][SMALL].values(),
            "large_system_times": ctx["time_in_system"][LARGE].values(),
            "tugs_available": ctx["tugs"].available,
            "small_berths_available": ctx["berths"][SMALL].available,
        }


def main() -> None:
    print(run_harbor_trial())


if __name__ == "__main__":
    main()

Turning Up the Power

The C tutorial turns the harbor into a 600-trial experiment over dredging depth, tugs, berth counts, traffic levels, and replications. The Python tutorial keeps a small scenario comparison:

import cimba

from tutorial.tut_4_1 import LARGE, departure_proc, ship_proc


def run_two_large_ship_scenario(num_large_berths: int, seed: int = 42) -> float:
    with cimba.Simulation(seed=seed) as sim:
        ctx = {
            "env": {"wind_magnitude": 4.0, "water_depth": 20.0},
            "tugs": cimba.ResourcePool("Tugs", capacity=6),
            "berths": [
                cimba.ResourcePool("Small berth", 1),
                cimba.ResourcePool("Large berth", num_large_berths),
            ],
            "comms": cimba.Resource("Comms"),
            "harbormaster": cimba.Condition("Harbormaster"),
            "departed": cimba.ObjectQueue("Departed ships"),
            "time_in_system": [cimba.Dataset(), cimba.Dataset()],
            "ship_by_process": {},
        }
        ctx["harbormaster"].subscribe(ctx["tugs"], *ctx["berths"])

        for idx in range(2):
            ship = {
                "size": LARGE,
                "tugs_needed": 3,
                "max_wind": 12.0,
                "min_depth": 13.0,
                "unloading_time": 2.0,
            }
            proc = cimba.Process(f"Ship_{idx:06d}_large", ship_proc, ctx, pass_process=True)
            ctx["ship_by_process"][proc] = ship
            proc.start()

        cimba.Process("Departures", departure_proc, ctx).start()
        sim.execute()

        return max(ctx["time_in_system"][LARGE].values())


def run_scenarios() -> dict[str, float]:
    return {
        "one_large_berth": run_two_large_ship_scenario(1),
        "two_large_berths": run_two_large_ship_scenario(2),
    }


def main() -> None:
    print(run_scenarios())


if __name__ == "__main__":
    main()

A larger Python version would put each scenario/replication in a trial grid and call cimba.run_experiment(), exactly like the M/M/1 tutorial.

The upstream C tutorial uses that larger sweep to produce a scenario chart. The same Python statistics path is: collect each ship’s time in system in cimba.Dataset, summarize replications with cimba.DataSummary, then plot the resulting rows:

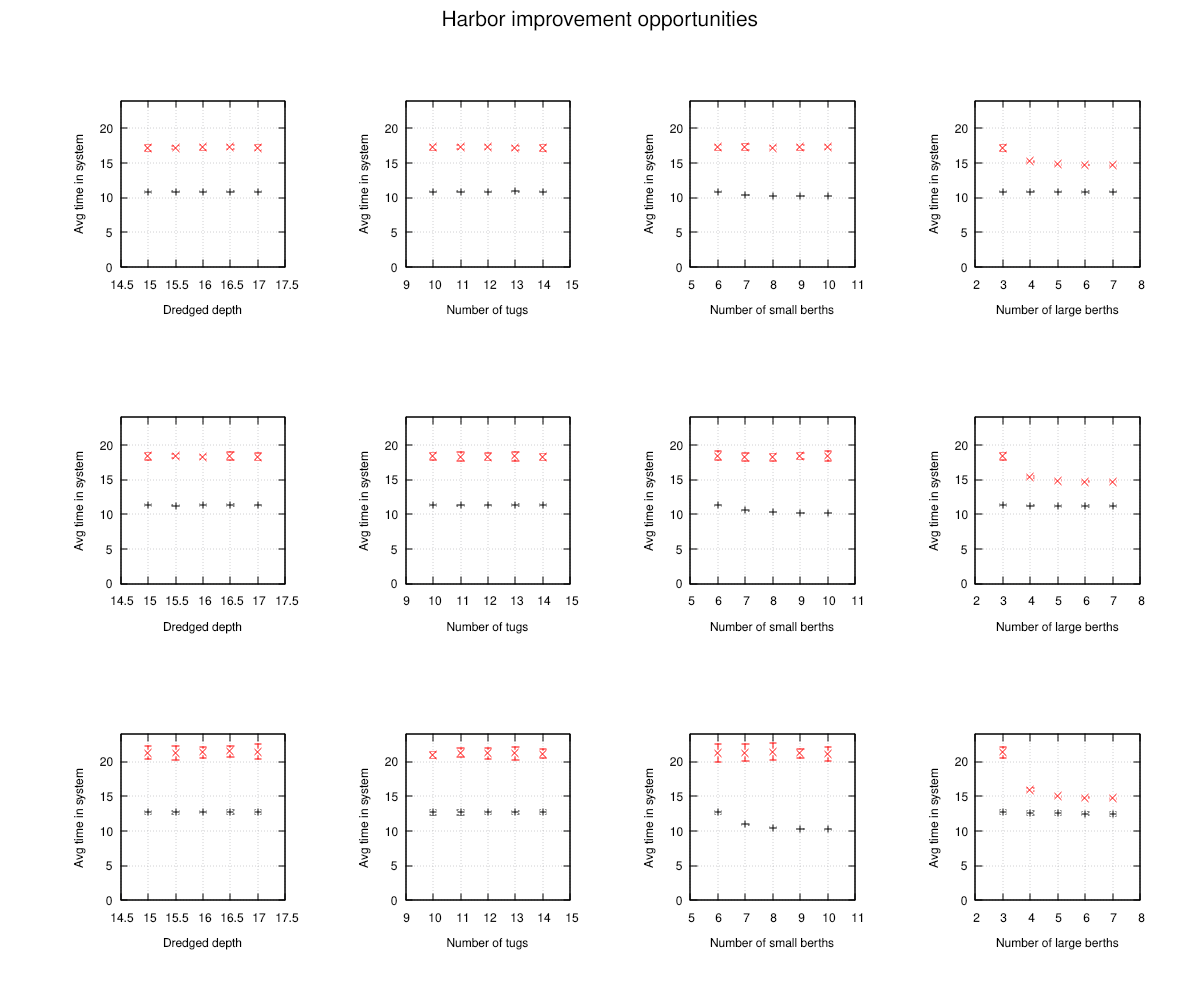

Average time in system for the harbor scenarios, with confidence intervals across replications.
